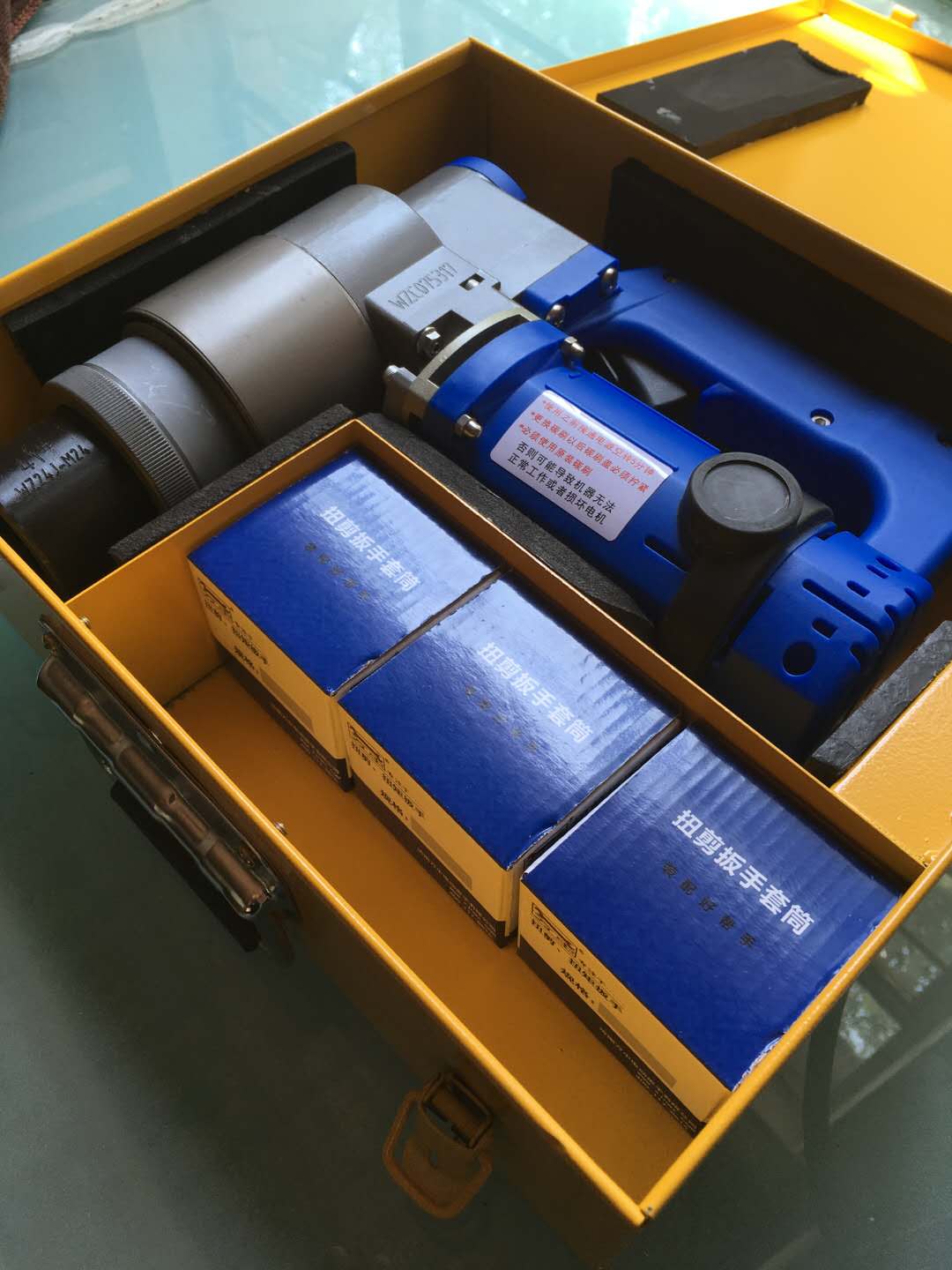

The electric torque wrench has the function of automatically controlling torque and is a mechanized construction tool for assembling threaded parts and bolts. Our factory's electric torque wrench host uses a double insulated single-phase series excitation motor and a reduction mechanism, with a novel structure, small size, light weight, and safety and reliability. Due to the static torque structure of the electric fixed torque wrench, it runs smoothly, without vibration, impact, or noise, and the operator is not affected by reverse torque, resulting in low labor intensity, This electric torque wrench is widely used in large-scale machinery, lifting equipment, and vehicle assembly operations, as well as in situations where there are strict requirements for the torque and axial tension of threaded fasteners. Therefore, how to tighten the bolts of the electric torque wrench and how to operate it:

1.安裝反作用力支架并擰緊螺釘，啟動主機，使方形銷孔與反作用支架孔相對應，然后安裝扳手套筒，插入銷，用橡膠圈固定。

1. Install the reaction support bracket and tighten the screws, start the main engine so that the square pin hole corresponds to the reaction support bracket hole, then install the wrench socket, insert the pin, and fix it with a rubber ring.

2.將控制器的扭矩旋鈕調節到所需的扭矩值，將主機的正反轉開關設置到前進位置，將扳手套筒套在螺紋接頭的六個面上。

2. Adjust the torque knob of the controller to the desired torque value, set the forward and reverse switches of the host to the forward position, and place the wrench socket on the six faces of the threaded joint.

3.按下電源開關啟動扳手，當反力支架的力臂緊靠在支架上時(支點可以是相鄰的螺栓或其他可以作為支點的位置)，螺栓開始擰緊，當螺栓的扭矩達到預定扭矩時，扳手會自動停止，完成緊固，松開電源開關，擰緊下一個螺栓。

3. Press the power switch to start the wrench. When the force arm of the reaction bracket is tightly against the bracket (the fulcrum can be an adjacent bolt or other position that can serve as a fulcrum), the bolt begins to tighten. When the bolt torque reaches the predetermined torque, the wrench will automatically stop and complete the tightening. Release the power switch and tighten the next bolt.

4.扳手自動停止后，通過反力支架的彈性變形力，支架的力臂自動脫離支點，扳手被取下，如果力臂脫離不了支點，可以撥動正反開關，然后點動電源開關扳手就可以拆下來。

4. After the wrench automatically stops, the force arm of the bracket automatically disengages from the fulcrum through the elastic deformation force of the counter force bracket, and the wrench is removed. If the force arm cannot detach from the fulcrum, the forward and backward switches can be toggled, and then the power switch wrench can be removed by clicking.
