The anti slip coefficient value of high-strength bolt connection friction surface should be rechecked before construction. This requirement is to be tested by the installation unit on the basis of qualified testing conducted by the production unit.

高強螺栓檢測時每500T鋼結構為一批，少于100T按一批計。在工廠處理的摩擦面試件出廠時應有三組，作為工地復驗，抗滑移系數試驗的zui小值應大于或等于設計規定。否則應對摩擦面作重新處理。

When testing high-strength bolts, each 500T steel structure is considered as a batch, and less than 100T is considered as a batch. When the friction test pieces processed in the factory leave the factory, there should be three sets for on-site re inspection. The minimum value of the anti slip coefficient test should be greater than or equal to the design regulations. Otherwise, the friction surface should be reprocessed.

抗滑移系數試驗用的試件，應與所代表的鋼結構為同一材質、統一摩擦面處理方法、同批制造、相同運輸條件、相同條件存放，同一性能等級的高強螺栓。

The specimens used for the anti slip coefficient test should be high-strength bolts of the same material, uniform friction surface treatment method, batch manufacturing, transportation conditions, storage conditions, and performance level as the represented steel structure.

高強螺栓檢測過程中，當發生下列情況之一時，所對應的荷載可視為試件的滑移荷載：

During the testing process of high-strength bolts, when one of the following situations occurs, the corresponding load can be considered as the sliding load of the specimen:

1） 試驗機發生明顯的回針現象；

1) The testing machine experienced obvious needle return phenomenon;

2） 試件側面劃線發生可見的錯動；

2) Visible misalignment of the side marking of the specimen;

3） X—Y記錄儀上變形曲線發生突變；

3) The deformation curve on the X-Y recorder undergoes a sudden change;

4） 試件突然發生“嘣”的響聲。

4) The specimen suddenly made a "bang" sound.



1.3 一般檢驗項目

1.3 General inspection items

1.3.1 高強度連接副的安裝順序及初擰、復擰扭矩檢驗。檢驗人員應檢查扳手標定記錄，螺栓施擰標記及螺栓施工記錄，有疑義時抽查螺栓的初擰扭矩。

1.3.1 Installation sequence and initial and re tightening torque inspection of high-strength connecting pairs. Inspectors should check the calibration records of wrenches, bolt tightening marks, and bolt construction records. If there are any doubts, spot check the initial tightening torque of bolts.

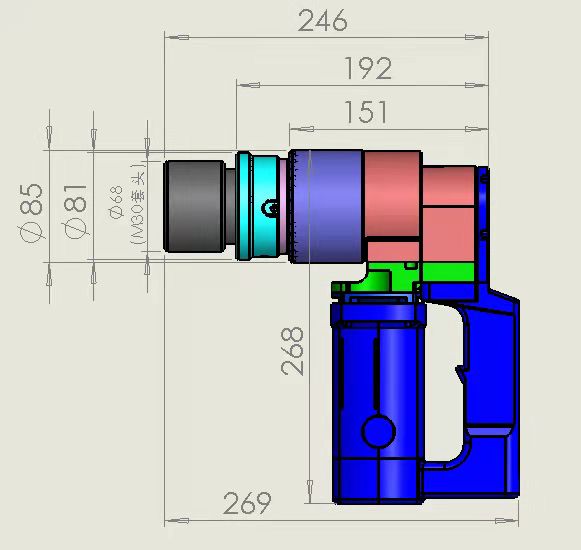

1.3.2 高強度螺栓的終擰檢驗。對扭剪型高強度螺栓連接副，終擰是以擰掉梅花頭為標志，可用肉眼全數檢查。非常簡便。但在施工過程中，應檢查初擰扭矩值及觀察螺栓終擰時螺母是否處于轉動狀態，轉動角度是否事宜。

1.3.2 Final tightening inspection of high-strength bolts. For high-strength bolt connection pairs with torsion shear, the final tightening is marked by the removal of the plum blossom head, which can be fully inspected with the naked eye. Very simple. However, during the construction process, the focus should be on checking the initial tightening torque value and observing whether the nut is in a rotating state when the bolt is finally tightened, and whether the rotation angle is appropriate.

1.3.3 高強度螺栓連接副終擰后應檢驗螺栓絲扣外露長度，要求螺栓絲扣外露2~3扣為宜，其中允許有10%的螺栓絲扣外露1扣或4扣，對同一個節點，螺栓絲扣外露應力求一致。

1.3.3 After the final tightening of high-strength bolt connections, the exposed length of the bolt threads should be inspected. It is recommended to expose 2-3 threads of the bolt threads, and 10% of the bolt threads are allowed to be exposed by 1 or 4 threads. For the same node, the exposed threads of the bolt threads should strive to be consistent.

1.3.4 其它檢驗項目

1.3.4 Other inspection items

高強度螺栓連接摩擦面應保持干燥、整潔、不應有飛邊、毛刺、焊接飛濺物、焊疤、氧化鐵皮、污垢及涂料等。

The friction surface of high-strength bolt connections should be kept dry, clean, and free from burrs, welding spatters, welding scars, oxide scales, dirt, and coatings.

高強度螺栓應能自由穿入螺栓孔，不應氣割擴孔，遇到必須擴孔時，zui大擴孔量不應超過1.2d（d為螺栓公稱直徑

High strength bolts should be able to freely penetrate the bolt hole and should not be expanded by gas cutting. When it is necessary to expand the hole, the large expansion amount should not exceed 1.2d (d is the nominal diameter of the bolt

高強度螺栓連接副扭矩系數.預拉力.抗滑移系數檢測細則

Detailed rules for testing torque coefficient, pre tension force, and anti slip coefficient of high-strength bolt connections
