一、“扭剪扳手”
1、 Torsion wrench
扭剪扳手的應用：
Application of torsion wrench:
扭剪型高強螺栓的初緊可使用沖擊電動扳手或定扭矩扳手,而終緊必須使用扭剪扳手，所以扭剪扳手是專門終緊扭剪型高強螺栓的。
The initial tightening of shear type high-strength bolts can be done using an impact electric wrench or a fixed torque wrench, while the final tightening must be done using a shear wrench. Therefore, shear wrenches are specifically designed for final tightening of shear type high-strength bolts.
扭剪扳手的使用：
Use of torsion wrench:
扭剪扳手主要是終緊扭剪型高強螺栓的，它的目的就是把扭剪型高強螺栓的梅花頭打斷即可。工作時將扳手頭對準螺栓頭，扣動開關即可開始工作，幾秒后，螺栓梅花頭將被扭斷，然后抽出扳手扣動扳機將梅花頭彈出，即結束工作。
The torsion wrench is mainly used for final tightening of torsion shear high-strength bolts, and its purpose is to break the plum blossom head of the torsion shear high-strength bolt. When working, align the wrench head with the bolt head, press the switch to start working. After a few seconds, the bolt ring head will be twisted and broken. Then, pull out the wrench and pull the trigger to eject the ring head, which ends the work.
扭剪扳手的特點：
The characteristics of a torsion wrench:
操作方便、省時省力、方便可靠。
Easy to operate, time-saving and labor-saving, convenient and reliable.

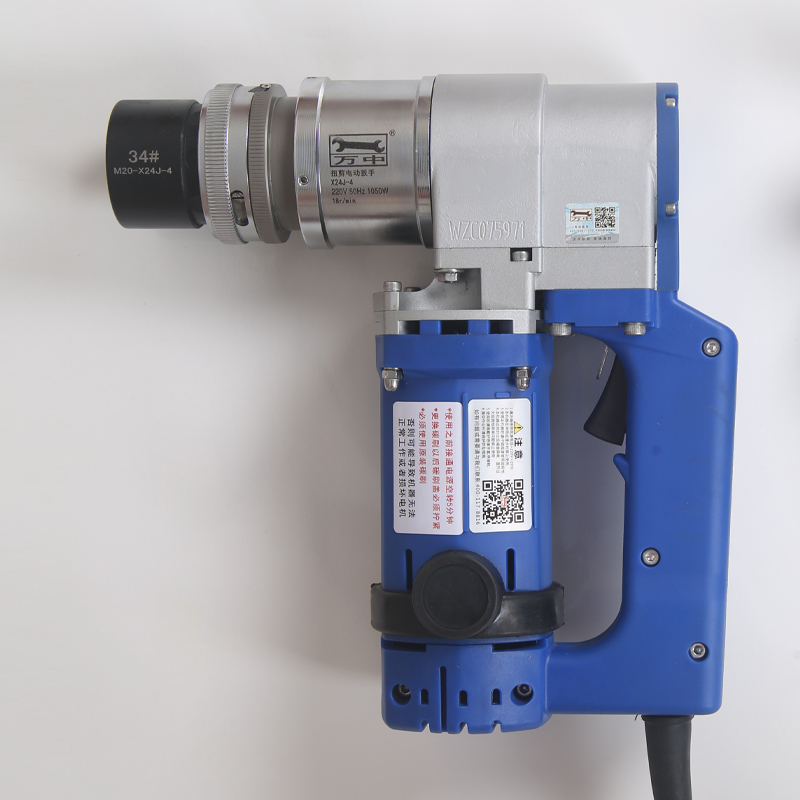

漢普電動扭剪扳手相較與所有競爭對手，體積更小、重量更輕、動力更強，相應減少作業強度，提高工作效率，每款產品都經過連續10萬次的極限扭矩試驗，確保的可靠性及超長的壽命，為每位客戶提供更好的使用體驗。
Compared to all competitors, the Hampton Electric Torsion Wrench is smaller in size, lighter in weight, and more powerful, reducing work intensity and improving work efficiency. Each product has undergone 100000 consecutive extreme torque tests to ensure strong reliability and long service life, providing each customer with a better user experience.
二、“定扭矩扳手”
2、 Fixed torque wrench
定扭矩扳手一般就是可以設定扭矩值的電動扳手，也叫定扭矩電動扳手。電動扭矩扳手一般用來緊固大六角高強螺栓，使用時，先把扭矩調到需要規定的扭矩，然后緊固螺栓。
A fixed torque wrench is generally an electric wrench that can set a torque value, also known as a fixed torque electric wrench. Electric torque wrenches are generally used to tighten large hexagonal high-strength bolts. When using them, first adjust the torque to the required torque, and then tighten the bolts.
電動定扭扳手分為電流式和動態扭矩傳感器式兩種，由控制器和擰緊軸組成。電流式定扭扳手根據電機擰緊過程中電流值的變化來判斷扭力值，當達到預定扭力時，電機停止工作。動態扭矩傳感器式是在擰緊軸上安裝有傳感器，時刻監測扭力值的變化，當達到預定扭力時，電機停止工作。
Electric torque wrenches are divided into two types: current type and dynamic torque sensor type, consisting of a controller and a tightening shaft. The current type fixed torque wrench determines the torque value based on the change in current value during the tightening process of the motor. When the predetermined torque is reached, the motor stops working. The dynamic torque sensor type is equipped with a sensor on the tightening shaft to constantly monitor the changes in torque value. When the predetermined torque is reached, the motor stops working.
